FLEXWAVE PRINTABLE METAL LABEL
The Flex-wave series flexible and printable RFID label is compatible with metal and liquid-rich environments, Its thin and light shape makes it easy to attach to curved surfaces such as cylinders, pipes, metal containers, and fixed assets. Widely used in product certification asset tracking, logistics tracking, anti-counterfeiting of valuables, and medical asset management, to improve the operational efficiency and inventory management for manufacturers and retailers.

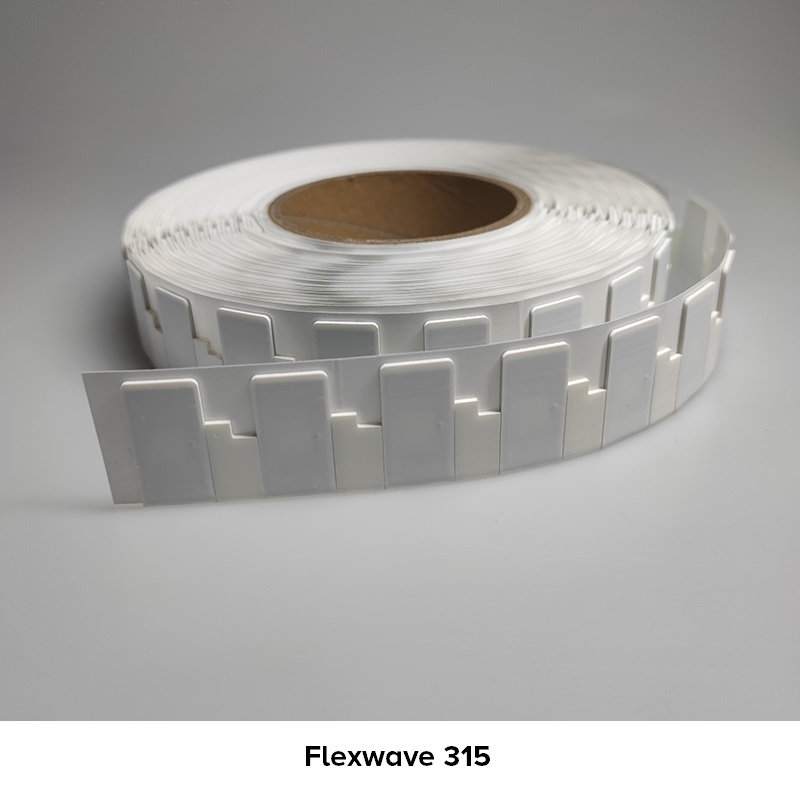

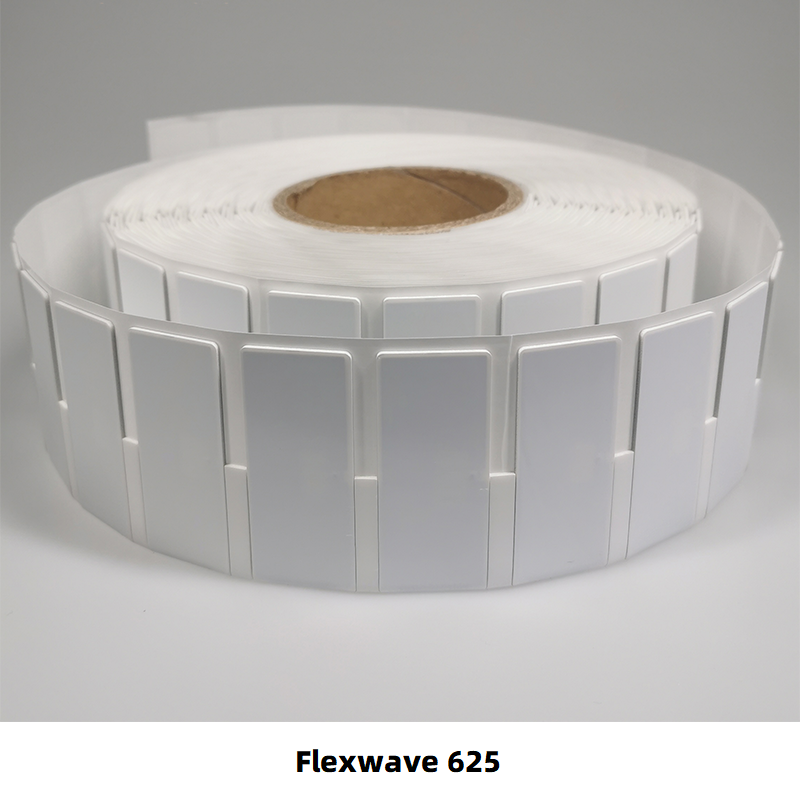

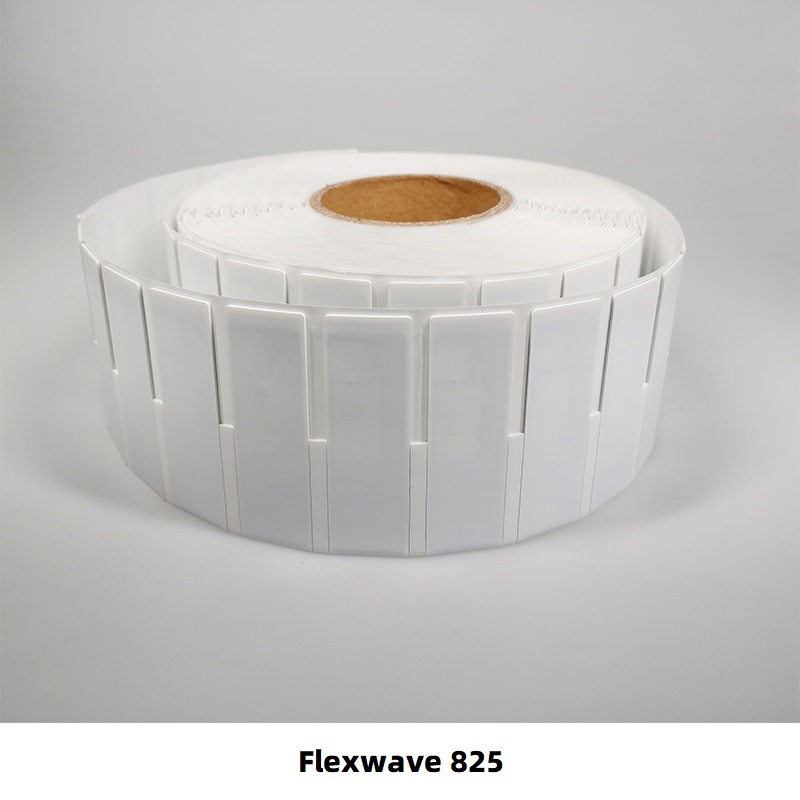

The Flex-wave series includes X40，825，730，718，625，and 315 of different sizes and read ranges.
RF Specifications
|
MODEL |
FLEXWAVE X40 |
FLEXWAVE 825 |
FLEXWAVE 730 |
FLEXWAVE 718 |
FLEXWAVE 625 |
FLEXWAVE 315 |
|
RF protocol |
ISO18000-6C, EPC Class 1 Gen2 |
|||||
|
Operating frequency |
865-868MHz (EU); 902-928MHz (US) |
|||||
|
Chip type |
UCODE 9 |
Monza R6 |
UCODE 8 |
UCODE 9 |
Monza R6 |
Monza R6 |
|
Memory configuration |
96-Bits EPC 96-Bits Unique TID |
96-Bits EPC 96-Bits Unique TID |
128-Bits EPC 96-Bits Unique TID |
96-Bits EPC 96-Bits Unique TID |
96-Bits EPC 96-Bits Unique TID |
96-Bits EPC 96-Bits Unique TID |
|
Read range on metal (2W ERP)¹ |
Up to 10 M |
Up to 6 M |
Up to 7 M |
Up to 5 M |
Up to 4 M |
Up to 1 .5M |
|
Read range off metal (2W ERP)¹ |
Up to 6 M |
Up to 3 M |
Up to 4 M |
Up to 2.5 M |
Up to 2.5 M |
Up to 0.6M |
|
Polarization |
Linear |
|||||
¹Read ranges are achieved by lab testing methodology, the read range will vary with output power of reader and applications.
Physical Specifications
|
MODEL |
FLEXWAVE X40 |
FLEXWAVE 825 |
FLEXWAVE 730 |
FLEXWAVE 718 |
FLEXWAVE 625 |
FLEXWAVE 315 |
|
Material |
Bright white PET |
|||||
|
Dimensions (mm) |
100 × 40 × 1.25 |
80 × 25 × 1.25 |
70 × 30 × 1.3 |
70 × 18 × 1 .3 |
60 × 25 × 1.25 |
30 × 15 × 1.25 |
|
Dimensions (inch) |
3.94 × 1.58 × 0.049 |
3.15 × 0.98 × 0.049 |
2.76 × 1.18 × 0.051 |
2.76 × 0.71 × 0.051 |
2.36 × 0.98 × 0.049 |
1.18 × 0.59 × 0.049 |
|
Packing |
250 / per roll |
500 / per roll |
500 / per roll |
500 / per roll |
500 / per roll |
500 / per roll |
|
Printer supported |
Zebra ZT411 / SATO CL4NX Plus / Postek TX3R / Toshiba SX-5 |
|||||
Operational and Environmental Specifications
|
Operational temperature |
-40°F (-40°C) to +185°F (+85°C) |
|
Storage temperature |
-40°F (-40°C) to +140°F (+60°C) |
|
Operational humidity |
5% to 95% non-condensing |
|
IP Rating |
IP68, at 20°C and 3.3 ft (1 m) 12 hours tested |
|
Shock and Vibration |
MIL STD 810-G |
|
Drop spec |
Multiple drops to concrete: 6.6 ft./2 m, across the operating temperature range |
|
Chemical resistance:² • Motor oil exposure • Salt water (salinity 15%) exposure • Sulfuric acid (10%, pH 2) exposure • NaOH (10%, pH 13) exposure |
No significant changes after²: • 168 hours • 48 hours • 48 hours • 48 hours |
²The chemical resistance is based on the concentration of solutions and application environment, please contact us for further details on chemical.
Mounting
|
Background adhesive |
High performance acrylic adhesive optimized for metal and painted metal surfaces |
|
Options |
Per-Encoding, Printing |
|
Warranty |
1 year |
