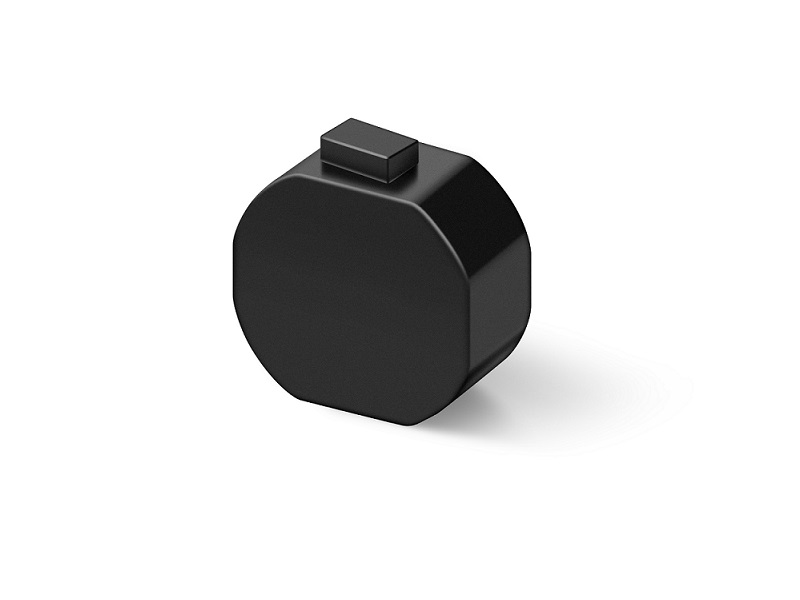

UNIT CEN (SMALL CERAMIC)
The Unit Cen UHF RFID tag is designed for small assets tracking such as tools and metallic parts. The Unit Cen tag is the industry’s best-sized tag for performance with a read range of up to 2 meters. The Unit Cen tag enables automatic tracking for improved productivity and reduced risks in foreign object debris.
RF Specifications
|
RF protocol |
ISO18000-6C, EPC Class 1 Gen2 |
|
|
Operating frequency |
865-868MHz (EMEA); 920-925MHz (CN, US) |
|
|
Chip type |
Higgs 3 |
UCODE 8 |
|
Memory configuration |
96-Bits EPC (extensible to 480b) 512-Bits User 64-Bits Unique TID |
128-Bits EPC 48-Bits Unique TID |
|
Data retention |
50 years at operation temperature |
|
|
Read range on metal (2W ERP) |
Up to 2 M（6.6 ft） |
|
|
Read range off metal (2W ERP) |
Limited |
|
|
Polarization |
Linear |
|
Physical Specifications
|
Tag Materials |
Ceramic |
|
Color |
Painted Black |
|
Dimensions |
Ø 5.5 x 2.5 ±0.15mm（Ø 0.22 x 0.1 ±0.008in） |
|
Weight |
0.01 oz (0.29 g) |
Operational and Environmental Specifications
|
Operational temperature |
-40°F (-40°C) to +185°F (+85°C) |
|
Survivability temperature |
-40°F (-40°C) to +392°F (+200°C) |
|
Operational humidity |
5% to 95% non-condensing |
|
IP Rating |
IP68 at 20°C, 6.6 ft (2 m) 48 hours tested |
|
Shock and Vibration |
MIL STD 810-G |
|
Drop spec |
Multiple drops to concrete: 4 ft./1.2 m across the operating temperature range |
|
Withstands exposure to |
Saltwater, Bleach, Cleaning solutions Formic acid, Gasoline, Oil |
Mounting System
|
Adhesive fixings |
• VHB Tape • Silicone sealants • Epoxy |
|
Others |

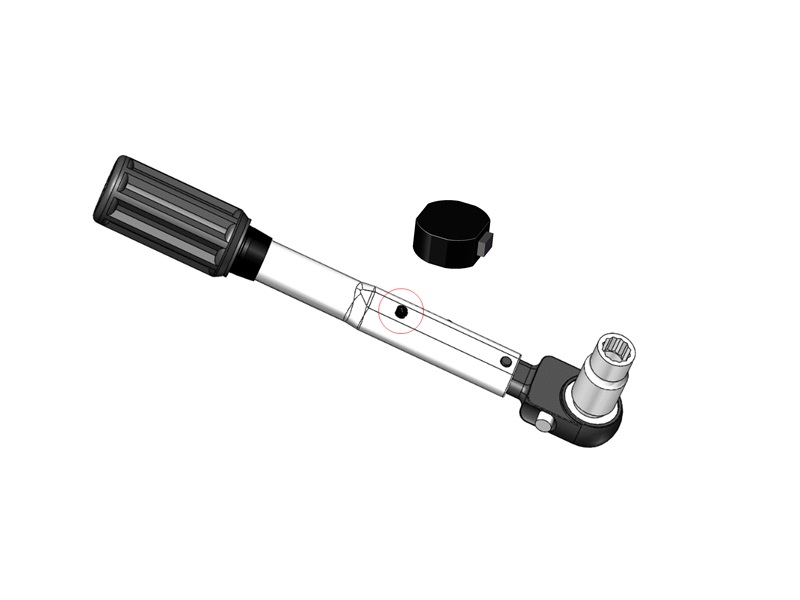

• Mounding embedded • Heat-shrinkable tubing |
