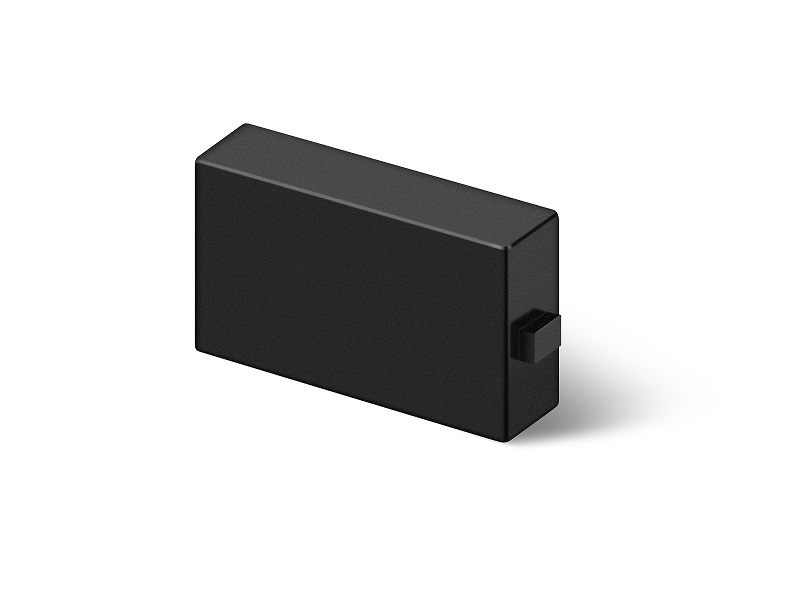

UNIT T (SMALL CERAMIC)

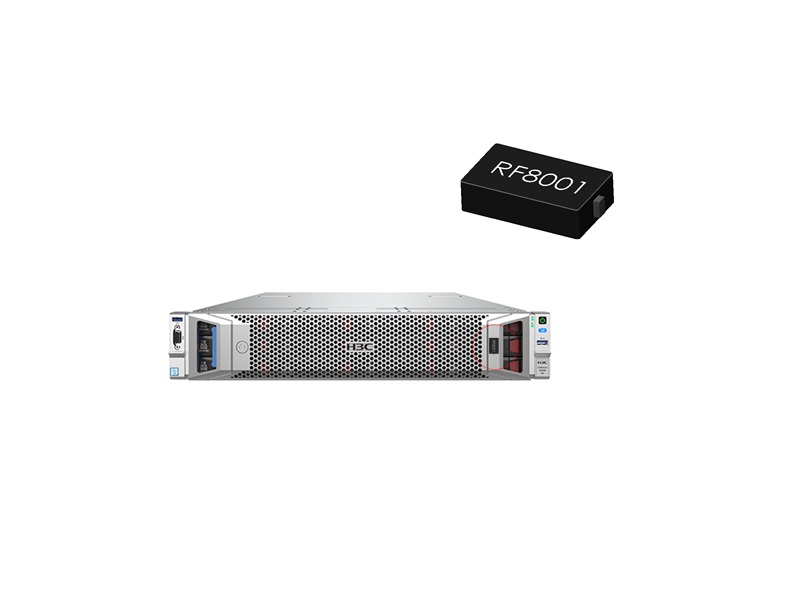

The Unit T is a classic size, high temperature and high-performance UHF RFID tag, it is optimized for placement on metal assets such as Tool tracking, IT asset tracking and parts management, The Unit T tag has an excellent performance with the read range of up to 3 meter that enables automatic tracking for improved productivity.

RF Specifications

RF protocol

ISO18000-6C, EPC Class 1 Gen2

Operating frequency

865-868MHz (EMEA); 920-925MHz (CN, US)

Chip type

Higgs 3

UCODE 8

Memory configuration

96-Bits EPC (extensible to 480b)

512-Bits User

64-Bits Unique TID

128-Bits EPC

48-Bits Unique TID

Data retention

50 years at operation temperature

Read range on metal (2W ERP)

Up to 3.0 M(10 ft)

Read range off metal (2W ERP)

Limited

Polarization

Linear



Physical Specifications

Tag Materials

Ceramic

Color

Painted Black

Dimensions

12 x 6.8 x 3.2 ±0.15mm(0.46 x 0.27 x 0.126 ±0.008in)

Weight

0.04 oz (1.14 g)



Operational and Environmental Specifications

Operational temperature

-40°F (-40°C) to +185°F (+85°C)

Survivability temperature

-40°F (-40°C) to +392°F (+200°C)

Operational humidity

5% to 95% non-condensing

IP Rating

IP68  at 20°C, 13.2 ft (4 m) 48 hours tested

Shock and Vibration

MIL STD 810-G

Drop spec

Multiple drops to concrete: 4 ft./1.2 m

across the operating temperature range

Withstands exposure to

Saltwater, Bleach, Cleaning solutions

Formic acid, Gasoline, Oil



Mounting System

Adhesive fixings

•          VHB Tape (Std)

•          Epoxy

Others

•          Injection mounding

•          Heat-shrinkable tubing
