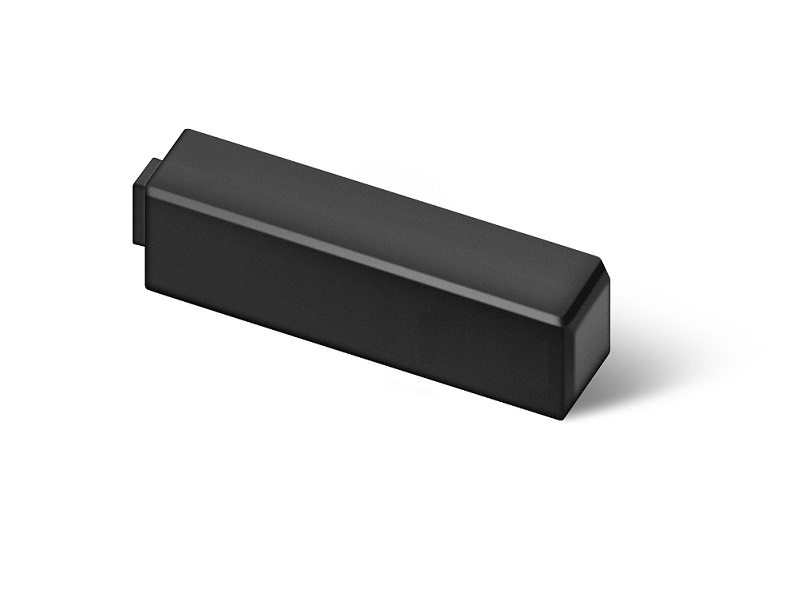

UNIT SLIM (SMALL CERAMIC)

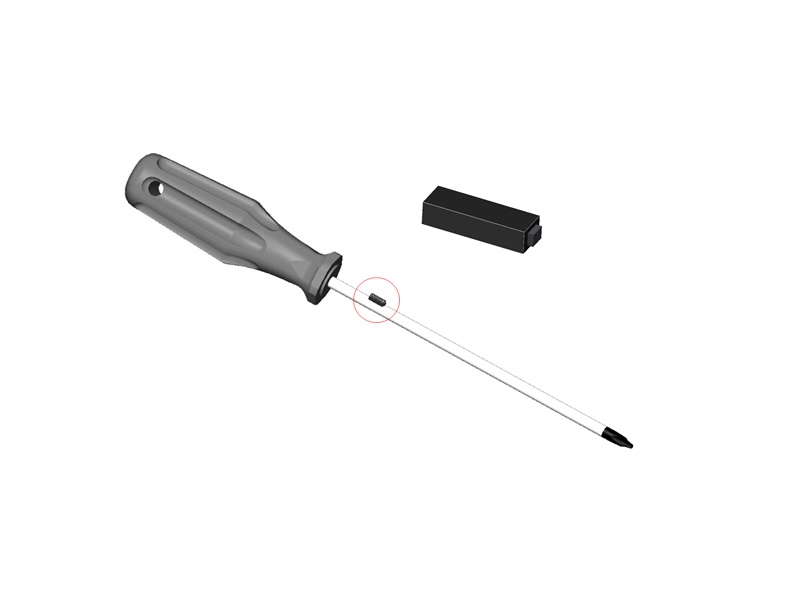

The Unit Slim UHF RFID tag is designed for small assets tracking such as slim tools and metallic parts, The Unit tag with the industry’s best size to performance with a read range of up to 2.0 meters, Unit Slim tags enable automatic tracking for improved productivity and reduced risks in foreign object debris.
RF Specifications
|
RF protocol |
ISO18000-6C, EPC Class 1 Gen2 |
|
|
Operating frequency |
865-868MHz (EMEA); 920-925MHz (CN, US) |
|
|
Chip type |
Higgs 3 |
UCODE 8 |
|
Memory configuration |
96-Bits EPC (extensible to 480b) 512-Bits User 64-Bits Unique TID |
128-Bits EPC 48-Bits Unique TID |
|
Data retention |
50 years at operation temperature |
|
|
Read range on metal (2W ERP) |
Up to 2.0 M（6.6 ft） |
|
|
Read range off metal (2W ERP) |
Limited |
|
|
Polarization |
Linear |
|
Physical Specifications
|
Tag Materials |
Ceramic |
|
Color |
Painted Black |
|
Dimensions |
10.2 x 3.0 x 2.2 ±0.2mm（0.4 x 0.12 x 0.087 ±0.008in） |
|
Weight |
0.025 oz (0.36 g) |
Operational and Environmental Specifications
|
Operational temperature |
-40°F (-40°C) to +185°F (+85°C) |
|
Survivability temperature |
-40°F (-40°C) to +392°F (+200°C) |
|
Operational humidity |
5% to 95% non-condensing |
|
IP Rating |
IP68, at 20°C, 6.6 ft (2 m) 48 hours tested |
|
Shock and Vibration |
MIL STD 810-G |
|
Drop spec |
Multiple drops to concrete: 4 ft./1.2 m across the operating temperature range |
|
Withstands exposure to |
Saltwater, Bleach, Cleaning solutions Formic acid, Gasoline, Oil |
Mounting System
|
Adhesive fixings |
• VHB Tape • Silicone sealants • Epoxy |
|
Others |
• Mounding embedded • Heat-shrinkable tubing |
