UNIT MINI (SMALL CERAMIC)

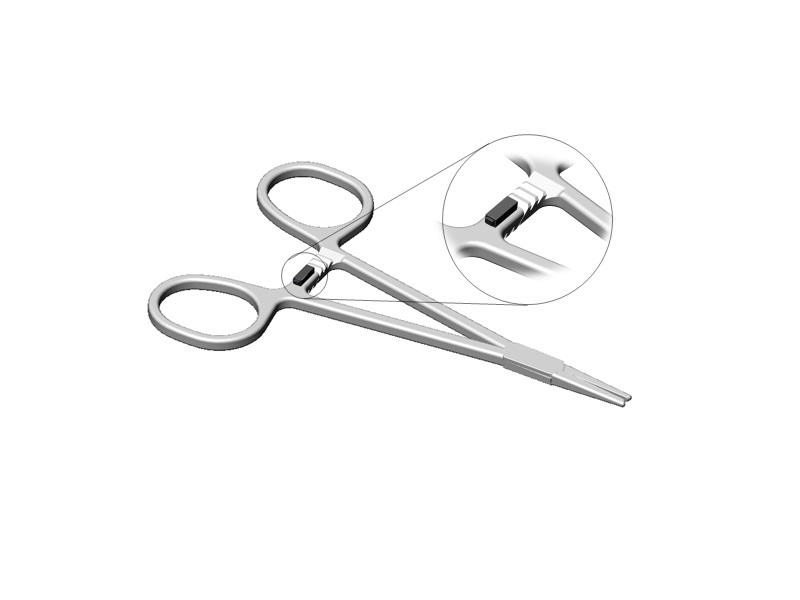

The Unit Mini UHF RFID tags are specially designed for minimal tools metallic parts, The ability of Unit Mini tag to be used for minimal metal applications has opened many doors for source tagging opportunities，Unit Mini tag is the industry’s smallest sized for performance with a read range of up to 1.5 meters.
RF Specification
|
RF protocol |
ISO18000-6C, EPC Class 1 Gen2 |
|
|
Operating frequency |
865-868MHz (EU); 920-925MHz (CN, US) |
|
|
Chip type |
Higgs 3 |
UCODE 8 |
|
Memory configuration |
96-Bits EPC (extensible to 480b) 512-Bits User 64-Bits Unique TID |
128-Bits EPC 48-Bits Unique TID |
|
Data retention |
50 years at operation temperature |
|
|
Read range on metal (2W ERP) |
Up to 1.5 M（4.9 ft） |
|
|
Read range off metal (2W ERP) |
Limited |
|
|
Polarization |
Linear |
|
Physical Specification
|
Tag Materials |
Ceramic |
|
Color |
Painted Black |
|
Dimensions |
7.5 x 2.5 x 2.0 ±0.2mm（0.3 x 0.1 x 0.08 ±0.008in） |
|
Weight |
0.006 oz (0.18 g) |
Operational and Environmental Specification
|
Operational temperature |
-40°F (-40°C) to +185°F (+85°C) |
|
Survivability temperature |
-40°F (-40°C) to +392°F (+200°C) |
|
Operational humidity |
5% to 95% non-condensing |
|
IP Rating |
IP68 at 20°C, 6.6 ft (2 m) 48 hours tested |
|
Shock and Vibration |
MIL STD 810-G |
|
Drop spec |
Multiple drops to concrete: 4 ft./1.2 m across the operating temperature range |
|
Withstands exposure to |
Saltwater, Bleach, Cleaning solutions Formic acid, Gasoline, Oil. |
Mounting System
|
Adhesive fixings |
• VHB Tape • Silicone sealants • Epoxy |
|
Others |
• Mounding embedded • Heat-shrinkable tubing |
