LAUNDRY

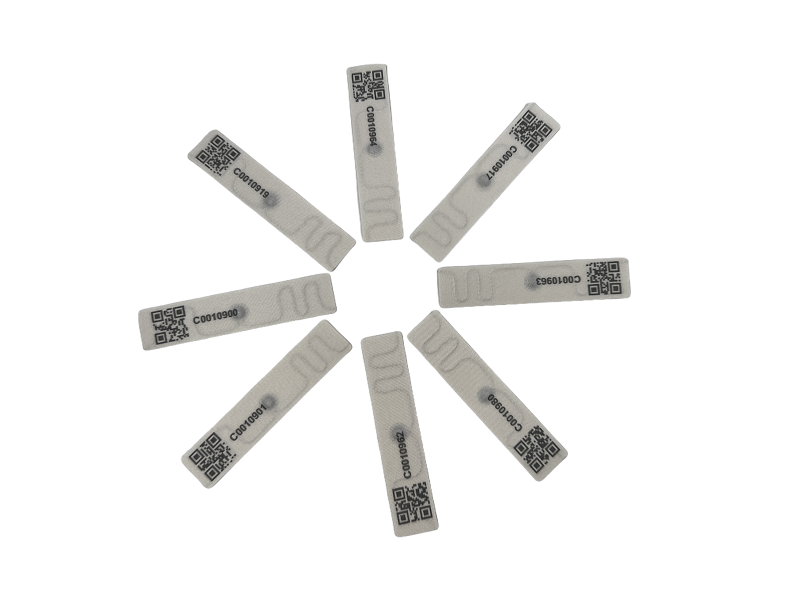

The UHF Laundry series of washable RFID tags are engineered to deliver the highest performance to textile inventory tracking and helps redefine how healthcare and hospitality manage textile inventory, offering unparalleled efficiency and control.
RF Specifications
|
MODEL |
70x15 |
70x10 |
50x12 |
|
RF protocol |
ISO18000-6C, EPC Class 1 Gen2 |
||
|
Operating frequency |
865-928MHz Global |
||
|
Chip type |
NXP UCODE 9 |
||
|
Memory configuration |
96-Bits EPC; 48-Bits Unique TID |
||
|
Read range (Fixed Reader) |
Up to 10 m（33 ft） |
Up to 8 m（26.4 ft） |
Up to 5 m（16.5 ft） |
|
Read range (Handled Reader) |
Up to 8.5 m（28 ft） |
Up to 7 m（23.1 ft） |
Up to 4 m（13.2 ft） |
|
Polarization |
Linear |
||
Physical Specifications
|
Materials |
Flexible Textile |
||
|
Dimensions (mm) |
70 x 15 x 0.9 |
70 x 10 x0.9 |
50 x 12 x 0.85 |
|
Dimensions (inch) |
2.75 x 0.6 x 0.035 |
2.7 x 0.4 x 0.035 |
2 x 0.5 x 0.03 |
|
Weight |
0.65 g |
0.5 g |
0.4 g |
Environmental Specifications
|
Operational temperature |
-40°C to +85°C |
|
Survivability temperature |
-20°C to +110°C |
|
Storage humidity |
5% to 95% RH |
|
Washing temperature |
90°С (194° F), 15 minutes |
|
Pre-drying in tumble |
180°С (356°F), 30 minutes |
|
Ironing temperature |
185°C (365°F), 10 seconds |
|
Sterilization process |
135°C (275°F), 20 minutes |
|
Water Extraction pressure |
60 bars |
|
Chemicals resistance |
Standard detergents, fabric softeners, bleach, oxygen/chlorine compounds, alkali substances, acetic and peracetic acid |
|
Washing method |
Laundry, dry cleaning |
|
Warranty |
200 cycles or 3 years whichever comes first |
Mounting System
|
Sew or heat-seal based on specific requirements, with different product P/N selections |
|
|
Installation Instructions |
1. Install the tag by sewing: Sew into a hem or inside a pocket of fabric 2. Install the tag by heat-sealing: Seal the tag onto the textile at 215°C and 0.6-0.8 MPa for 15 seconds |
