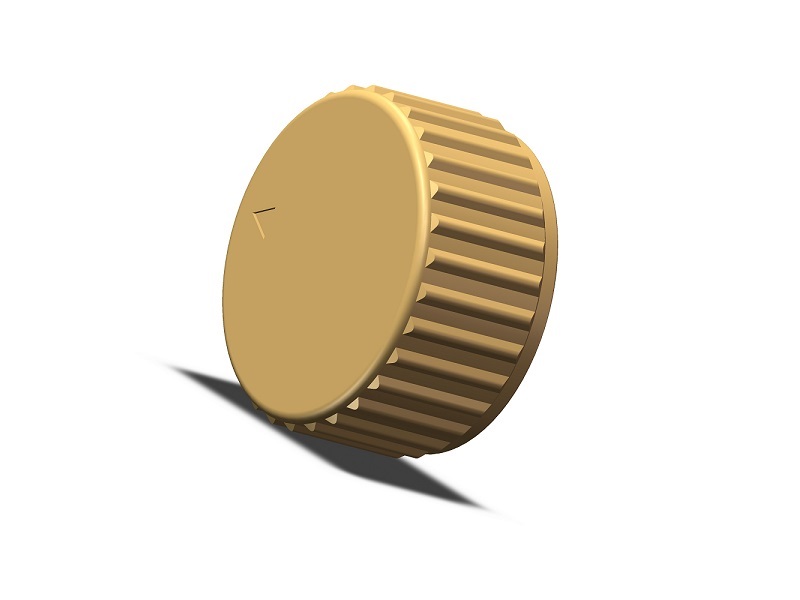

OIL 100 (SPECIAL-EMBEDDABLE)

The Oil 100 is a small and durable UHF RFID tag for embedded applications, It can be used for a long time in the harsh environment of high temperatures up to 240℃（464°F）and pressure up to 75MPa（10888psi）, the Oil 100 tag can be easily embedded in the metal, read range up to 1 meter.

Download datasheet

RF Specifications

RF protocol	ISO18000-6C, EPC Class 1 Gen2
Operating frequency	865-868MHz (EMEA); 920-925MHz (CN, US)
Chip type	UCODE 8	Higgs 3
Memory configuration	128-Bits EPC 48-Bits Unique TID	96-Bits EPC (extensible to 480b) 512-Bits User 64-Bits Unique TID
Data retention	50 years at operation temperature
Read range on metal (2W ERP)	Up to 1 M（3.3 ft）Embedded
Read range off metal (2W ERP)	Limited
Polarization	Linear

Physical Specifications

Material	PEEK
Color	Beige
Dimensions	ø10.3 x 5.0mm ±0.1mm （ø0.4 x 0.2 ±0.006 in）
Weight	0.03 oz (0.9 g)

Operational and Environmental Specifications

Operational temperature	-40°F (-40°C) to +185°F (+85°C)
Survivability temperature	-48°F (-40°C) to +464°F (+240°C)
Compressive strength	75MPa（10888psi）embedded
Operational humidity	5% to 95% non-condensing
IP Rating	IP69k
Shock and Vibration	MIL STD 810-G
Drop spec	Multiple drops to concrete: 4 ft./1.2 m across the operating temperature range
Chemical resistance: • Saltwater (15% salinity) exposure • Sodium Hydroxide (10% pH 14) exposure • Sulfuric acid (10%, pH 2) exposure • Engine oil exposure • Isopropyl exposure • alcohol Industrial cleaner exposure • Epoxy resin coolant exposure • Industrial rust lubricant exposure • Acetone exposure • Gasoline exposure • Diesel fuel exposure • Soap solution (30%) exposure • Carboxylic acids exposure	No significant changes after: • 168 hours • 168 hours • 168 hours • 168 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours

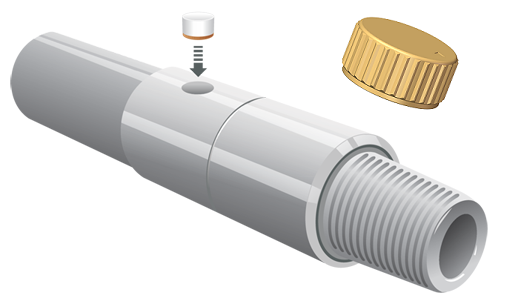

Mounting System

Mechanical fixings

• Knock-In

• Recommended hole size ø 10 x 5.2 mm
