PIPE TRAK(SPECIAL)
The Pipe Trak tag was designed specifically to track pipe in the Oil and Gas industry. the Pipe Trak tag is ideally suited for track and trace of difficult-to-tag cylindrical assets, its robust carrying case and attachment system enables it to withstand the harsh environments associated with high temperature and high pressure.
RF Specifications
|
RF protocol |
ISO18000-6C, EPC Class 1 Gen2 |
|
|
Operating frequency |
865-868MHz (EMEA); 920-925MHz (CN, US) |
|
|
Chip type |
UCODE 8 |
Higgs 3 |
|
Memory configuration |
128-Bits EPC 48-Bits Unique TID |
96-Bits EPC (extensible to 480b) 512-Bits User 64-Bits Unique TID |
|
Data retention |
50 years at operation temperature |
|
|
Read range on metal (2W ERP) |
Up to 2M（6.6 ft） |
|
|
Read range off metal (2W ERP) |
Limited |
|
|
Polarization |
Linear |
|
Physical Specifications
|
Material |
Stainless steel with epoxy |
|
Color |
Metallic |
|

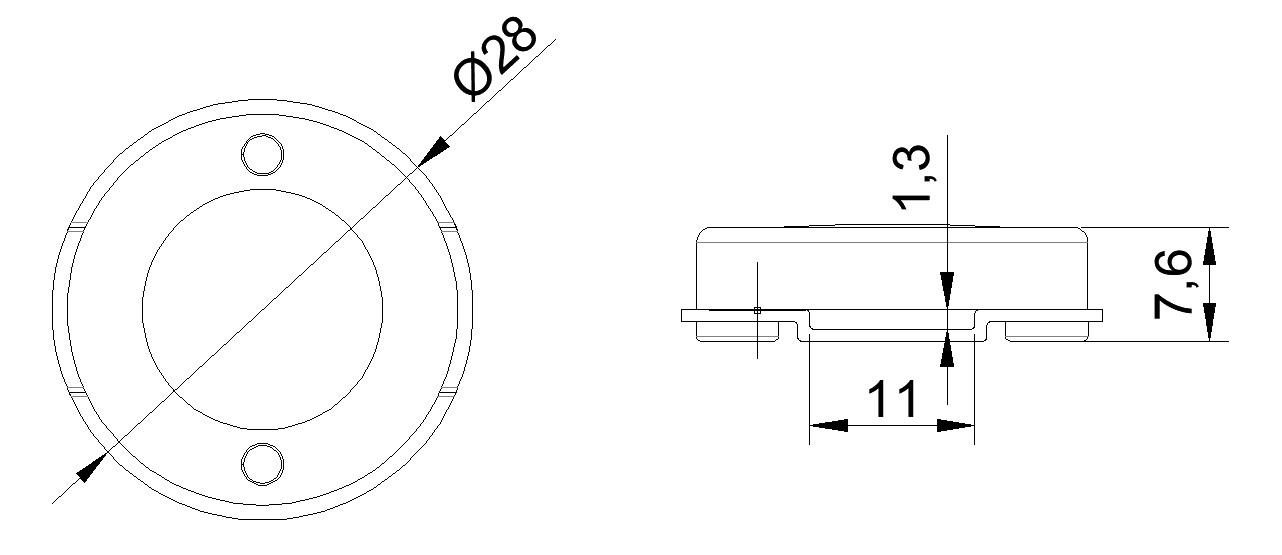

Dimensions |
ø28 x 7.6mm ±0.2mm (ø1.1 x 0.3 in ±0.008) |
|
Weight |
0.88 oz (25 g) |
Operational and Environmental Specifications
|
Operational temperature |
-40°F (-40°C) to +185°F (+85°C) |
|
Survivability temperature |
-48°F (-40°C) to +302°F (+150°C) |
|
Operational humidity |
5% to 95% non-condensing |
|
IP Rating |
IP68, at 20°C, 6.6 ft (2 m) 24 hours tested |
|
Shock and Vibration |
MIL STD 810-G |
|
Drop spec |
Multiple drops to concrete: 4 ft./1.2 m across the operating temperature range |
|
Chemical resistance: • Motor oil exposure • Saltwater (salinity 15%) exposure • Sulfuric acid (10%, pH 2) exposure • NaOH (10%, pH 13) exposure |
No significant changes after: • 168 hours • 48 hours • 48 hours • 48 hours |

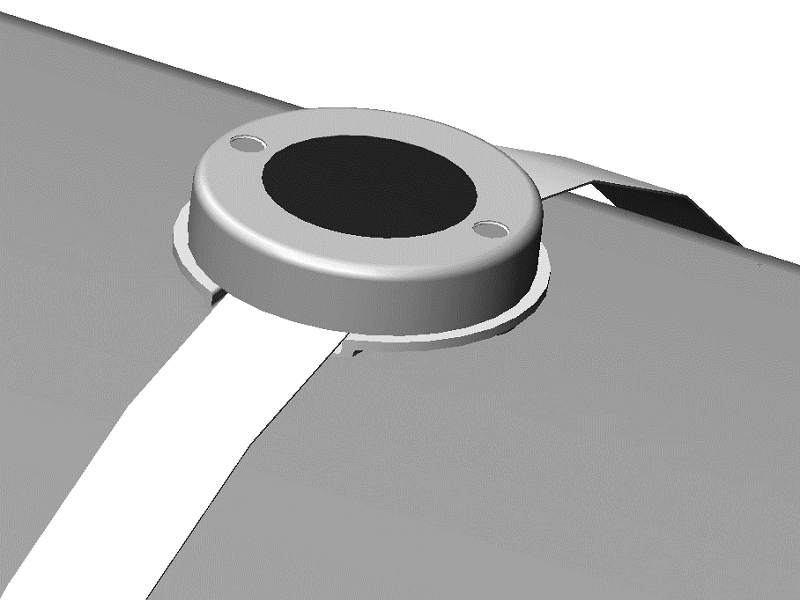

Mounting System
|
Mechanical fixings |
• Cable ties • Welding |
