SIGMA SERIES (MULTI-DUTY)
The Sigma series UHF RFID tag is made of FR4 material with cost-effective and performance of waterproof, anti-metal, and anti-drop, which is the best option for general asset tracking, Sigma tags' typical applications include fixed asset management, logistics, and warehouse management, equipment management, container management, etc.
RF Specifications
|
Model |

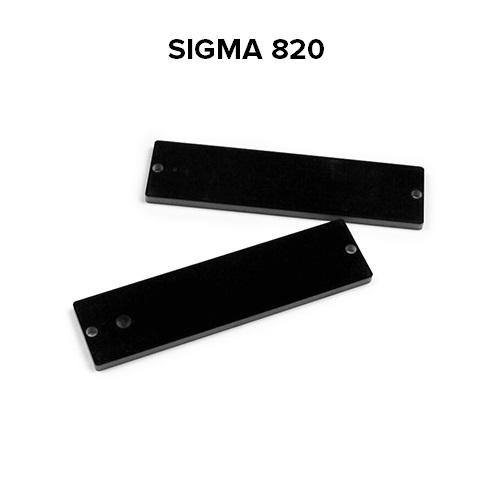

Sigma 820 |

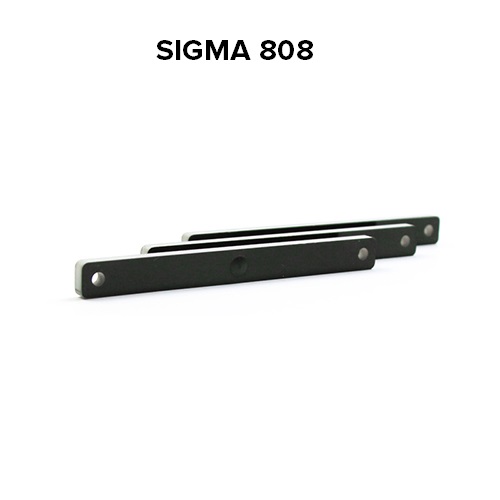

Sigma 808 |

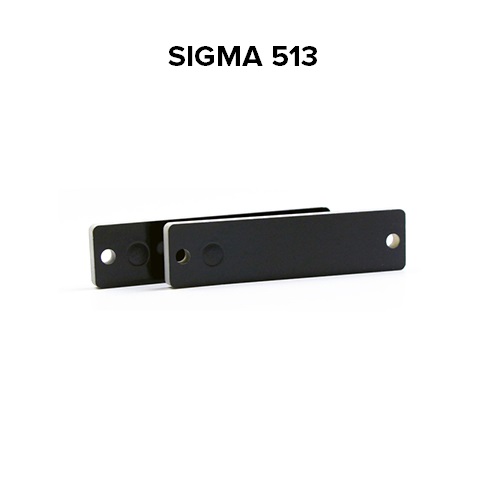

Sigma 513 |

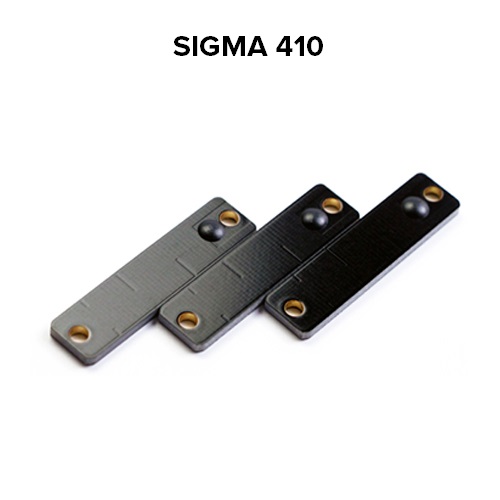

Sigma 410 |

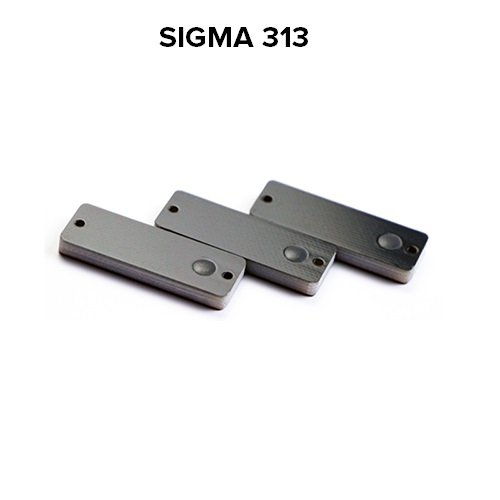

Sigma 313 |
|
|
RF protocol |
ISO18000-6C, EPC Class 1 Gen2 |
|||||
|
Operating frequency |
865-868MHz (EMEA); 920-925MHz (CN, US) |
|||||
|
Chip type |
UCODE 8 |
|||||
|
Memory configuration |
96-Bits EPC 48-Bits Unique TID |
|||||
|
Data retention |
50 years at operation temperature |
|||||
|
Read range on metal (2W ERP) |
Up to 8M |
Up to 6M |
Up to 5M |
Up to 4M |
Up to 3.5M |
|
|
Read range off metal (2W ERP) |
Limited |
|||||
|
Polarization |
Linear |
|||||
Physical Specifications
|
Model |
Sigma 820 |
Sigma 808 |
Sigma 513 |
Sigma 410 |
Sigma 313 |
|
Tag Materials |
FR4 |
||||
|
Color |
Black (Customizable) |
||||
|
Dimensions (mm) |
80 x 20 x 3.5 |
80 x 8 x 3.5 |
52 x 13 x 3.5 |
40 x 10 x 2 |
36 x 13 x 3.5 |
|
Weight |
0.4 oz (12g) |
0.18 oz (5g) |
0.19 oz (5.5g) |
0.07 oz (2.0g) |
0.16 oz（4.6g） |
Operational and Environmental Specifications
|
Operational temperature |
-40°F (-40°C) to +185°F (+85°C) |
|
Survivability temperature |
-40°F (-40°C) to +248°F (+120°C) |
|
Operational humidity |
5% to 95% non-condensing |
|
IP Rating |
IP68 at 20°C, 6.6 ft (2 m) 24 hours tested |
|
Shock and Vibration |
MIL STD 810-G |
|
Drop spec |
Multiple drops to concrete: 4 ft./1.2 m, across the operating temperature range |
|
Withstands exposure to |
Saltwater, Bleach, Cleaning solutions, Formic acid, Gasoline, Oil, etc. |
Mounting System
|
Adhesive fixings |
• Adhesive (Std) • Screws |
||||
|
Hole dimensions |
3.5mm |
3mm |
3mm |
3mm |
2mm |
