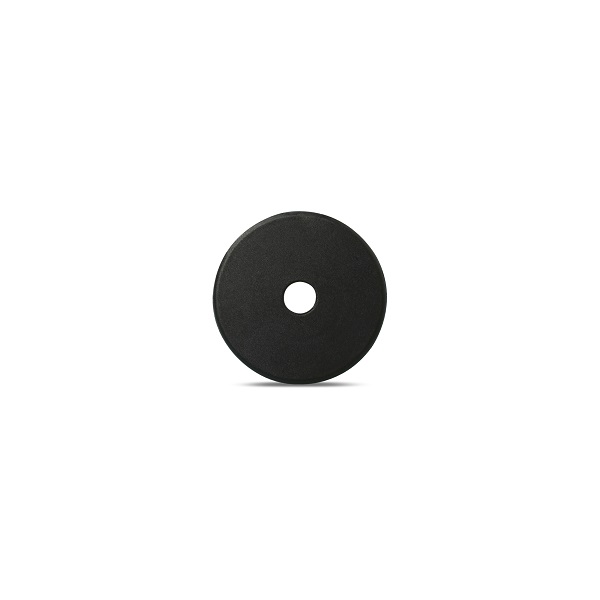

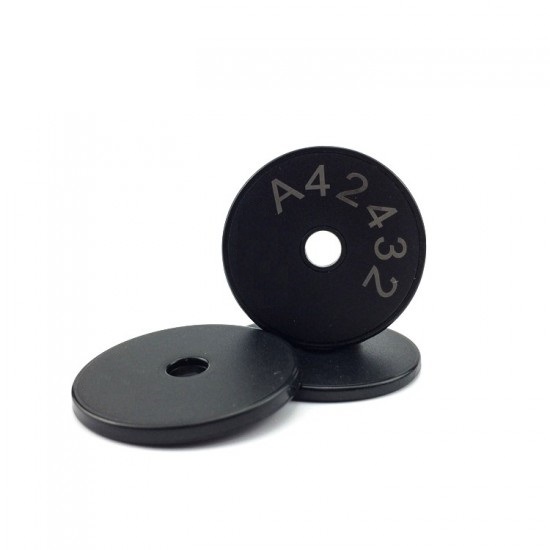

GT-3035 (RUGGED)

GT3035 UHF RFID Tags are specially designed for harsh environment conditions in industrial applications, It has a small form factor and can be used for a long time in high-temperature and pressure and exposed to caustic fluids, GT3035 tag can be easily attached to non-metallic assets with adhesive and screws, read range up to 1.5 meter.

Download datasheet

RF Specifications

RF protocol	ISO18000-6C, EPC Class 1 Gen2
Operating frequency	865-868MHz (EU); 902-928MHz (US)
Chip type	Higgs 9（Customizable）
Memory configuration	96-Bits EPC 688-Bits User 96-Bits Unique TID
Data retention	50 years at operation temperature
Read range on metal (2W ERP)	Limited
Read range off metal (2W ERP)	Up to 150 CM
Polarization	Circular

Physical Specifications

Material	High-performance engineering polymer
Color	Black

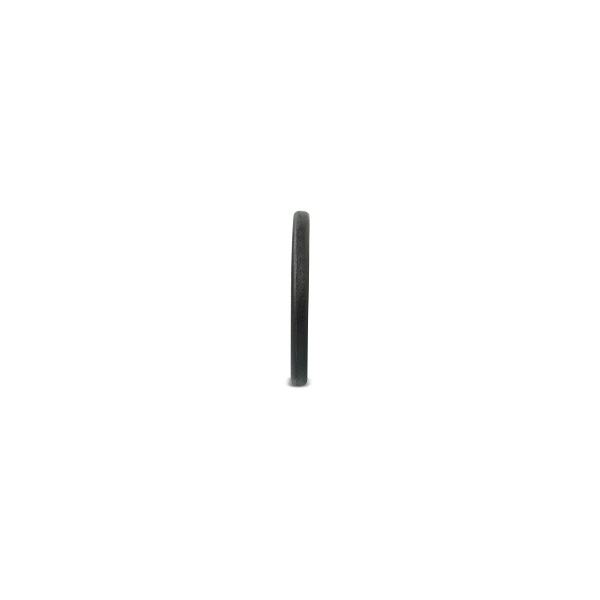

Dimensions	Ø30 x 3.0mm (±0.2mm)
Weight	0.06 oz (1.6 g)

Operational and Environmental Specifications

Operational temperature	-40°F (-40°C) to +185°F (+85°C)
Survivability temperature	-40°F (-40°C) to +248°F (+120°C)
Operational humidity	5% to 95% non-condensing
IP Rating	IP68, at 20°C, 6.6 ft (2 m) 72 hours tested
Shock and Vibration	MIL STD 810-G
Drop spec	Multiple drops to concrete: 4 ft./1.2 m across the operating temperature range
Compression strength	Up to 12 MPa (1740 psi)
Chemical resistance: • Saltwater (15% salinity) exposure • Sodium Hydroxide (10% pH 14) exposure • Sulfuric acid (10%, pH 2) exposure • Engine oil exposure • Isopropyl exposure • alcohol Industrial cleaner exposure • Epoxy resin coolant exposure • Industrial rust lubricant exposure • Acetone exposure • Gasoline exposure • Diesel fuel exposure • Soap solution (30%) exposure • Carboxylic acids exposure	No significant changes after: • 168 hours • 168 hours • 168 hours • 168 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours • 48 hours

Mounting System

Mechanical fixings

• Screws (M4.5)

• Cable tie

Adhesive fixings

• VHB Tape

• Adhesive
